Magellan is the first security system to combine
security with popular consumer features and a stylish design. Magellan
looks different than anything else in the security industry. Install it
anywhere in your home or small business, Magellan blends beautifully
with any décor. Listen to music, leave a message or use your system as a
telephone, alarm clock or monitoring device. With Magellan you have
security and so much more!

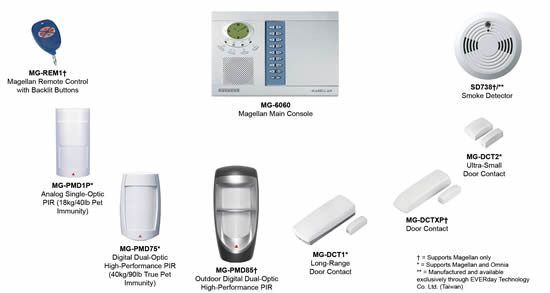

Magellan consists of wireless detection devices installed at specific
entry and exit points, as well as other vulnerable areas, such as
windows. These devices protect the premises and communicate with
Magellan’s main console. If you have armed the system and a device
detects a breach, a siren will be activated and your central station
will immediately be notified by phone.
Choose from wireless motion detectors that are immune to pets, door
contacts, and remote controls that automate your most frequently used
security functions. Magellan is perfect for securing your home and small
business. |
| |
| |
 |

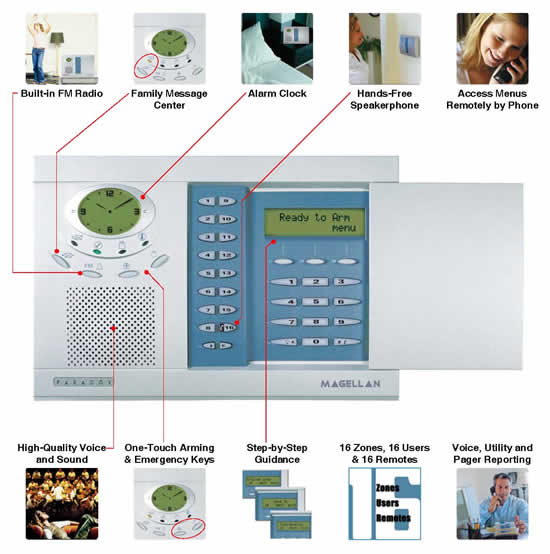

MG-6060
Magellan All-In-One Wireless Console
|
Features |
|
|
FM radio |
|
|
Hands-free speakerphone |
|
|
High-quality voice and sound |
|
|
Family message center |
|
|
Alarm clock |
|
|
Voice, Utility and Pager reporting |
|
|
Access system menus remotely by telephone |
|
|
Receive system status 3 ways(LEDs, LCD and
voice) |
|
|
Wall or desktop mounting |
|
|
Home automation (X10) |
|
|
Chime zones |
|
|
16 wireless zones & 16 remote controls |
|
|
16 users |
|
|
One-touch arming & emergency keys |
|
|
Full, force, stay, instant & automatic arming |
|
|
256 events buffered |
|
|
2 PGM outputs |
|
|
Includes 7.2V NiMH rechargeable battery pack
(Paradox # 0780100178) |
|
|
Size: 21.8cm x 14.7cm x 3.6cm (8.6in x 5.8in
x 1.4in) |
|
|
Built-in 90dB siren |
|
|
Supervised telephone line |
|
|
Available in 433MHz or 868MHz |
|
|
Supports Memory Key (PMC-3) |
|
|
Includes one MG-REM1 remote control
|
|
|
|
MG-REM1
Magellan Remote Control with Backlit Buttons V2.0
|
Features |
|
|
Water resistant, stylish clear
blue plastic with backlight for buttons |
|
|
Perform up to 5 different actions |
|
|
Wireless range in a typical residential
environment:
- 30m (100ft) with MG-6060;
- 60m (200ft) with MG-RCV3 |
|
|
Available in 433MHz or 868MHz |
|
|
| MG-RAC1
Magellan Remote Control with Integrated Access Card V2.0
|
Features |
|
|
Water resistant, stylish clear
blue plastic with backlight for buttons |
|
|
Perform up to 5 different actions |
|
|
Wireless range in a typical residential
environment:
- 30m (100ft) with MG-6060;
- 60m (200ft) with MG-RCV3 |
|
|
Available in 433MHz or 868MHz |
|
|
Built-in access card (present remote control
to a reader like an access card) |
|
MG-PMD1P
Analog Single-Optic PIR
(18kg/40lb Pet Immunity)
|
Features |
|
|
Dual element sensor |
|
|
Immune to animals weighing up to 18kg (40lb) |
|
|
11m x 11m (35ft x 35ft) and up to 15m (50ft)
for center beams with 88.5° viewing angle |
|
|
Wireless range in a typical residential
environment:
- 35m (115ft) with MG-6060;
- 70m (230ft) with MG-RCV3 |
|
|
When a higher level of immunity is required,
such as when animals are constantly in the detection area, consider
using MG-PMD75 |
|
|
Patented Auto Pulse Signal Processing |
|
|
Automatic Temperature Compensation |
|
|
Alive software (alarm LED continues to
display when PIR is in energy save mode without compromising battery
life) |
|
|
3-minute energy save mode after two
detections within a five-minute period |
|
|
|
MG-PMD75
Digital Dual-Optic High-Performance PIR
(40kg/90lb True Pet Immunity)
|
Features |
|
|
Patented Digital Motion Detection |
|
|
Dual optics (2 dual opposed element sensors) |
|
|
Immune to animals weighing up to 40kg (90lb) |
|
|
Digital Dual Opposed Detection |
|
|
Digital Shield algorithm with adjustable
sensitivity |
|
|
Single or Dual Edge Processing |
|
|
11m x 11m (35ft x 35ft) with 90° viewing
angle |
|
|
Wireless range in a typical residential
environment:
- 35m (115ft) with MG-6060;
- 70m (230ft) with MG-RCV3 |
|
|
Patented Auto Pulse Signal Processing |
|
|
Automatic Temperature Compensation |
|
|
Alive software (alarm LED continues to
display when PIR is in energy save mode without compromising battery
life) |
|
|
3-minute energy save mode after two
detections within a five-minute period |
|
|
|
|
MG-PMD85 Outdoor Digital Dual-Optic High-Performance PIR(40kg/90lb True Pet Immunity) |
|
Features |
|
|
Impact and temperature resistant casing |
|
|
Operates at -35°C to +50°C (-31°F to +122°F) |
|
|
Casing lined with an injected rubber gasket |
|
|
UV protected lens |
|
|
Dual Optical Filtering System |
|
|
Metal shield maximizes protection from EMI
and RFI signals |
|
|
Multi-level sensitivity adjustment |
|
|
Patented Digital Motion Detection |
|
|
Dual optics (2 dual opposed element sensors) |
|
|
Immune to animals weighing up to 40kg (90lb) |
|
|
Digital Dual Opposed Detection |
|
|
Digital Shield algorithm with adjustable
sensitivity |
|
|
Single or Dual Edge Processing |
|
|
11m x 11m (35ft x 35ft) with 90° viewing
angle |
|
|
Wireless range in a typical residential
environment:
- 35m (115ft) with MG-6060;
- 70m (230ft) with MG-RCV3 |
|
|
Patented Auto Pulse Signal Processing |
|
|
Automatic Temperature Compensation |
|
|
Alive software (alarm LED continues to
display when PIR is in energy save mode without compromising battery
life) |
|
|
3-minute energy save mode after two
detections within a five-minute period |
|
|
|
MG-DCT1 Long-Range Door Contact
|
Features |
|
|
Two high-sensitivity reed
switches (magnet included) |
|
|
Universal transmitter input (N.C.) |
|
|
Wireless range in a typical residential
environment:
- 35m (115ft) with MG-6060;
- 70m (230ft) with MG-RCV3 |
|
|
Low battery and signal transmission LED |
|
|
Available in 433MHz or 868MHz |
|
|
Anti-tamper switch |
|
|
Dimensions: 12.4cm x 4.5cm x 3.3cm (4.9in x
1.8in x 1.3in) |
|
|
MG-DCTXP Door Contact
|
Features |
|
|
One high-sensitivity reed switch
(magnet included) |
|
|
Universal transmitter input (N.O./N.C.) |
|
|
Wireless range in a typical residential
environment:
- 30m (100ft) with MG-6060;
- 60m (200ft) with MG-RCV3 |
|
|
Available in 433MHz or 868MHz |
|
|
Anti-tamper switch |
|
|
Dimensions: 11cm x 3.2cm x 2.5cm (4.4in x
1.3in x 1in) |
|
|
MG-DCT2 Ultra-Small Door Contact
|
Features |
|
|
One high-sensitivity reed switch
(magnet included) |
|
|
Wireless range in a typical residential
environment:
- 18m (60ft) with MG-6060;
- 36m (120ft) with MG-RCV3 |
|
|
Available in 433MHz or 868MHz |
|
|
Anti-tamper switch |
|
|
Dimensions: 4.4cm x 3.0cm x 1.7cm (1.7in x
1.2in x 0.7in) |
|
|
SD-738 EVERday Smoke Detector
|
Features |
|
|
One high-sensitivity
photoelectric smoke sensor |
|
|
Built-in siren |
|
|
Wireless range in a typical residential
environment:
- 30m (100ft) with MG-6060;
- 60m (200ft) with MG-RCV3 |
|
|
Available in 433MHz or 868MHz |
|
|
Manufactured and available exclusively
through EVERday Technology Co. Ltd. (Taiwan) |
|
|
|
MG-RCV3 Magellan Wireless Expansion Module
|
Features |
|
|
Compatibility:
Stand-alone: 8 remote controls to activate on-board PGMs
Esprit: 8 remote controls to arm/disarm the system and control PGMs
Spectra: 8 wireless zones and 8 remote controls
Digiplex: 16 addressable zones and 16 remote controls |
|
|
Low battery, tamper and check-in supervision
(Spectra and Digiplex only) |
|
|
Transmitter signal strength display (Spectra
and Digiplex only) |
|
|
Up to 4 PGM outputs:
- 3 PGM outputs and 1 optional output (Esprit and stand-alone mode
only)
- 1 PGM output and 1 optional output (Spectra and Digiplex only) |
|
|
Noise level test and indicator |
|
|
Available in 433MHz or 868MHz |
|
|
Functions with all Magellan transmitters |
|
|
Includes one MG-REM1 remote control |
|
|
|
306
Direct Connect Interface
|
Features |
|
|
Enables main board to communicate
onsite with a PC at 8m (25ft). |
|
|
Connect from main board's serial port
connector to PC's serial port (DB-9). |
|
|
Now includes Magellan/Grafica to 306 Adapter
Cable (0778708100). |
|
|
Communication speed:
- 57.6k baud with Magellan MG-6060
- 38.4k baud with Digiplex DGP-NE96
- 19.2k baud with Digiplex DGP-848 |
|
|
PMC-3 Hand-Held Plug-in Memory Key
|
Features |
|
|
Download or upload control panel
programming in less than 5 seconds |
|
|
Connect directly to memory connector on the
control panel |
|
|
No need for a telephone line, PC or any other
peripheral device |
|
 |
  |
 |
 |
 |
|
| |
|
Please
log in to access all documents. |
|
|
|
 |
 |
 |
|
|
 |
| |
UDS-2000
WinLoad Installer Upload/Download Software
|
 |
|
| |
|
Features |
|
|
User-friendly programming and
monitoring of DigiplexNE, Digiplex and Spectra control panels and
modules |
|
|
Remote uploading and downloading using most
standard modems at 300 baud |
|
|
On-site (local) uploading and downloading at
38.4k baud (DigiplexNE) or 19.2k baud (Digiplex) using a 306 Direct
Connect Interface (8m/25ft) or a DNE-CONV1 Converter (300m/1000ft) |
|
|
Draw and download/upload up to 32 floor plans
for Grafica |
|
|
Download images and tunes into Grafica |
|
|
Multiple users, groups and databases |
|
|
Network compatible |
|
|
Advanced printing of reports and zone/user
programming |
|
|
Supports several languages simultaneously (available
in English, Spanish, Chinese, Czech, French, Hebrew, Hungarian,
Italian, Polish, Portuguese, Russian, Serbo-Croatian, Slovak,
Swedish and Turkish) |
|
|
|
|
|
