Spec. download |
High resolution
Super miniature model
Various lenses available
Functional settings can be set as desired by using theActive Visual Mate(Optional)
White balance control
Electronic iris
AGC
Back light compensation
[Specifications]
Effective pixels: 380k(N), 440k(P)
Resolution: 450TVL
Minimum illumination: 1.6 lx. F2.0
Gain control: AGC(6-30dB)
Back light compensation: ON
S/N ratio: 50dB
Shutter speed: EI(1/60(N) or 1/50(P)-1/100,000)
White balance: ATW

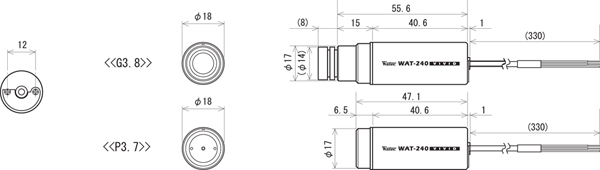

Available lenses: G3.8(Glass), P3.7(Pin hole)
Option lenses: G1.9, G2.5, G6.0, G8.0, G12.0, G25.0(Glass)
Weight: 28g
Accessory Camera
holder
Options
WPDC6(DC plug)
AD603-120/230(Power supply)
H002(Holder)
AGC OFF, fixed shutter speed and/or color temperature |
